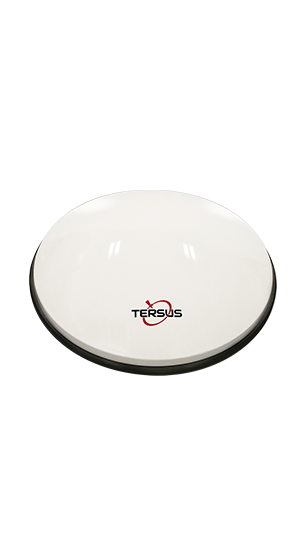

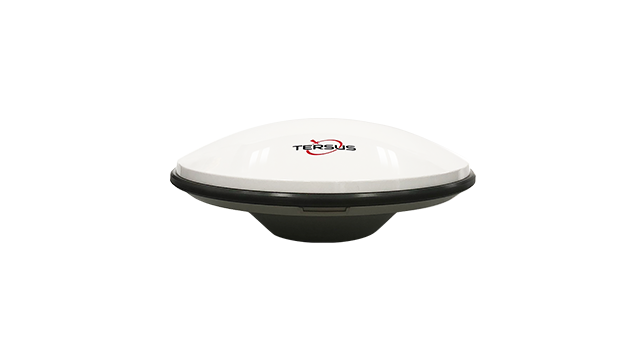

AX4E02
The AX4E02 is a full-constellation survey antenna. It can receive signals from GPS, GLONASS, BeiDou, Galileo, QZSS, SBAS, as well as L-Band correction service, which can be used in land survey, marine survey, channel survey, seismic monitoring, bridge survey, container operation,agriculture applications, autonomous vehicles, and etc. The AX4E02 was calibrated in NGS and its high precision has been recognized.
Features
Documents
Supports GPS L1/L2/L5, GLONASS L1/L2/L3, BeiDou B1/B2/B3, Galileo E1/E5a/E5b/E6, QZSSL1/L2/L5/L6, SBAS L1/L5, IRNSS L5, L-Band
An internal multi-path-rejection board eliminatesmulti-path interference errors
Has a multi-feed design to ensure superposition ofphase center and geometrical center, andminimize the influence of multipath errors
IP67 rated water and dustproof design
Internal lightning proof circuit protects LNA frombeing damaged by high voltage surges
Very low noise figure
-
Datasheet_AX4E02
Release Date: 2024-10-28 Version:1.4
