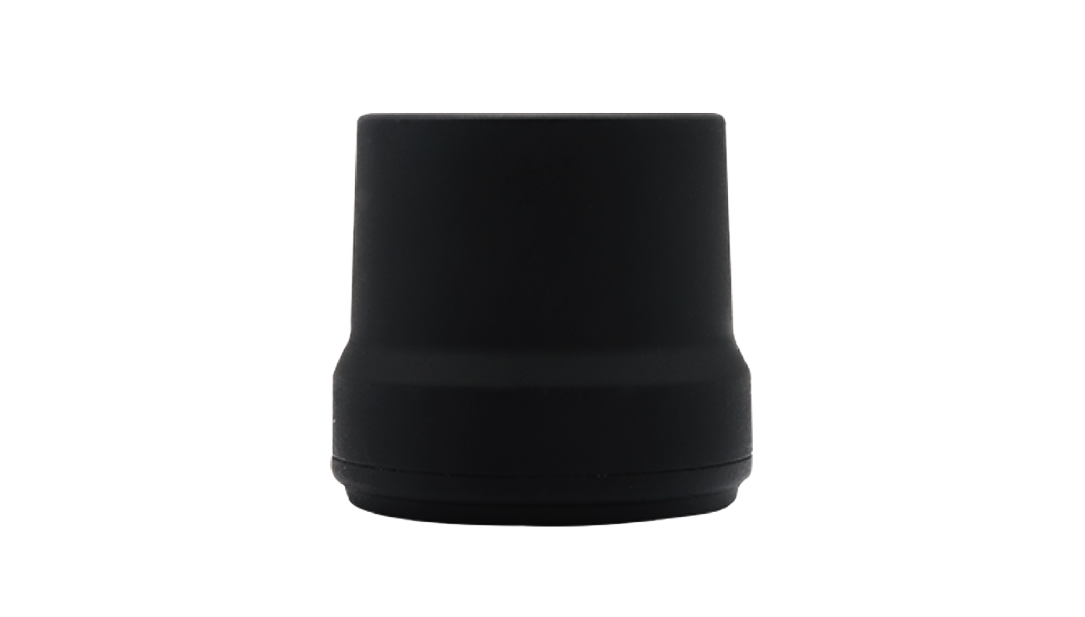

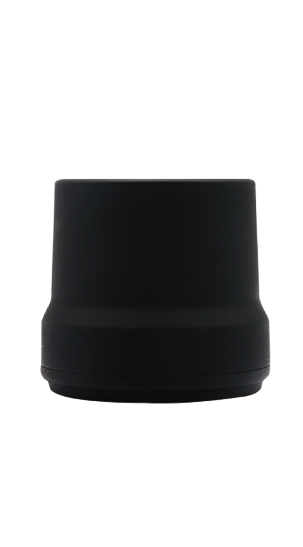

AX4E05
The AX4E05 is a high performance GNSS antenna designed for high precision positioning service and offers superior satellite signal tracking, including GPS, GLONASS, GALILEO, BeiDou, as well as L-Band correction service. It could be used for applications as surveying and mapping, and various UAVs operations as aerial photography, remote sensing, infrastructure inspection, traffic control, and public security.
This helix antenna ensures a high phase center stability with centimeter level accuracy. Its high gain with ultralow signal loss, wide beam width for exceptional low elevation satellite tracking with symmetric radiation patterns effectively improve positioning accuracy even under challenging environments that has blockage.
Features
Documents
Supports GPS L1/L2/L5, GLONASS L1/L2, BeiDou B1/B2/B3, Galileo E1/E5a/E5b, QZSS L1/L2/L5/L6, IRNSS L5, SBAS L1/L5, L-Band
High stability and high repeatability at phase center with centimeter level accuracy
High antenna gain having superior tracking performance at low elevation angles
Improved signal filtering and excellent multipath rejection
lightweight, low profile facilitates easier integration
SMA-J connector
-
Datasheet_AX4E05
Release Date: 2024-10-28 Version:1.2
