Positioning & Heading

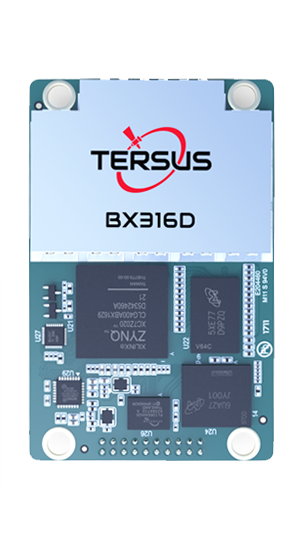

The BX316D is a GNSS RTK board for providing accurate positioning and heading information. This board provides real-time, cost efficient, and cm-level positioning as well as flexible interfaces for a variety of applications, such as precision navigation, precision agriculture, surveying, and UAVs.
Compatibility
The BX316D is pin-to-pin compatible with NovAtel OEM617D. It is designed for take-up by original equipment manufacturers and system integrators. In-built 4GB memory supports data collection. Its popular interface and log/command format make it compatible with most of the OEM boards in market.
Video_Quick Start

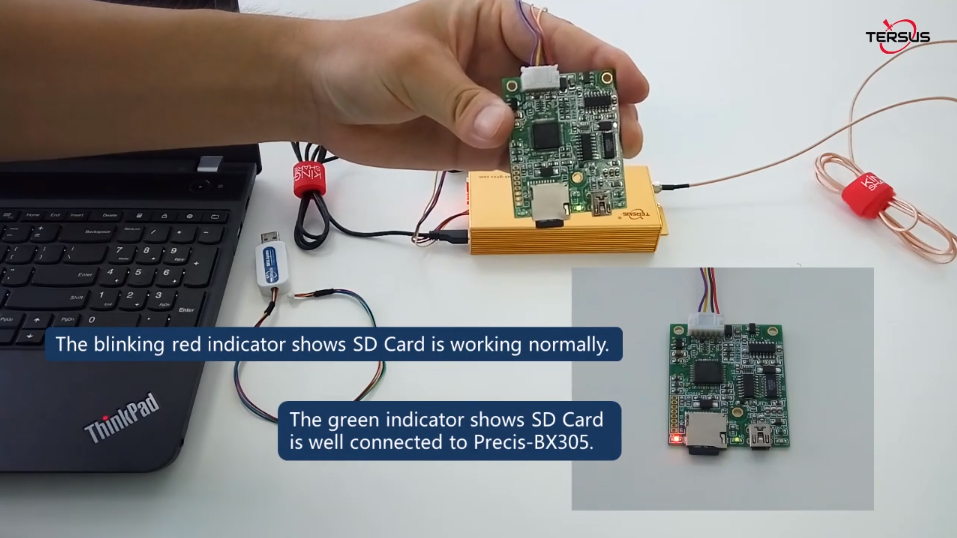

Log data with external data logger
Features
Documents
Supports RTK positioning mode or RTK positioning + heading mode, with software configurable modes
Up to 20Hz RTK solution updates and raw data output
Supports 384 channels
Pin-to-pin compatible with Novatel OEM617D
Log/command compatible with NovAtel protocol
Supports PPS output and event mark input
Supports in-built 4GB memory, which makes data collection easy
-
Datasheet_BX316D
Release Date: 2021-01-11 Version:2.9
-
Brochure_GNSS OEM Boards & Receivers
Release Date: 2019-08-30 Version:2.2
-
User Manual_BX Series GNSS Receiver
Release Date: 2021-06-17 Version:2.5
-
Log & Command Reference for Tersus BX GNSS OEM Boards
Release Date: 2020-11-03 Version:3.2
-
CE_RED_BX316D OEM
Release Date: 2019-05-13 Version:1.0
-
FCC_SDoc_BX316D OEM
Release Date: 2019-05-13 Version:1.0
