Tersus David GNSS Receiver
The Tersus David is a cost-efficient, palm-sized GNSS receiver designed for surveying UAVs, AGVs, and agricultural applications. Working with an external GNSS antenna, the free Tersus Survey App and post-processing software, the David GNSS receiver is a low-cost solution for all survey applications, including real-time RTK positioning and data collection for PPK.
Characteristics
4GB on board an embedded multimedia card (eMMC) makes it easy to save data for post processing. The compact size, IP67-rated enclosure and external Bluetooth module alleviates most of the inconveniences encountered in field work.
Video_Quick Start

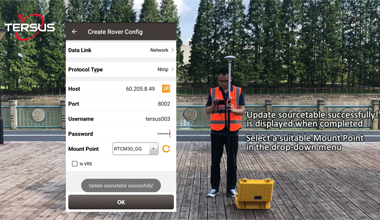

David Rover Working with CORS
Video_Quick Start

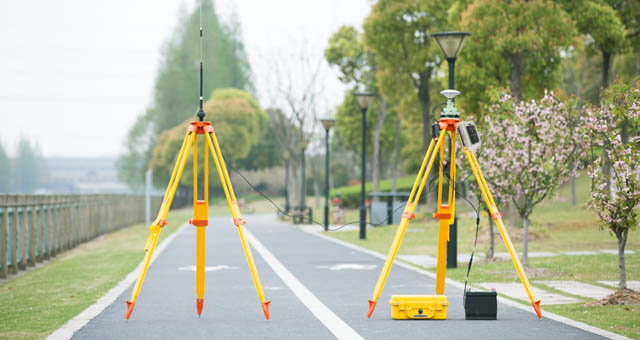

2W Radio Working Mode (Base and Rover Setup)
Video_Quick Start

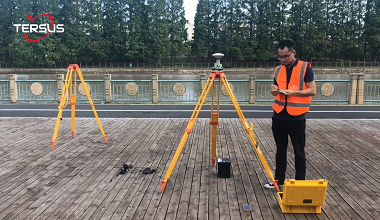

Point-to-Point Working Mode
Features
In the Box
Documents
Videos
Supports GPS L1/L2, GLONASS L1/L2, and BeiDou B1/B2
Supports 384 channels
Supports RTCM2.3/3.x, CMR, CMR+ corrections
Easy to connect an external powerful radio for long range
20Hz raw measurement output for post processing
Supports Nuwa & FieldGenius surveying software
Base Kit with 28W Radio includes
1 x David GNSS receiver
1 x DC-2pin to USB Power Cable
1 x COMM1-Bluetooth module
1 x COMM2-7pin to USB & DB9 Cable
1 x USB Type A Female to USB (Micro+Type C) OTG cable
1 x DB9 Male to USB Type A Male converter cable

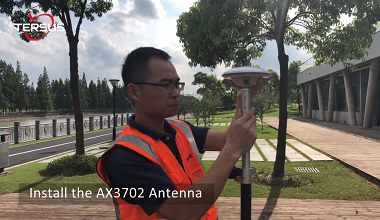

1 x AX3702 GNSS antenna
2 x GNSS antenna connector
1 x TNC-J to SMA cable 1.5m (GNSS antenna cable)
1 x height measure accessory
1 x wrench
1 x warranty card
1 x DC-2pin & 30W-Radio-DC-2pin to Bullet-DC
1 x Bullet-DC to Alligator Clips
1 x COMM2-7pin to USB & 30W-Radio-5pin Cable
1 x 30W radio

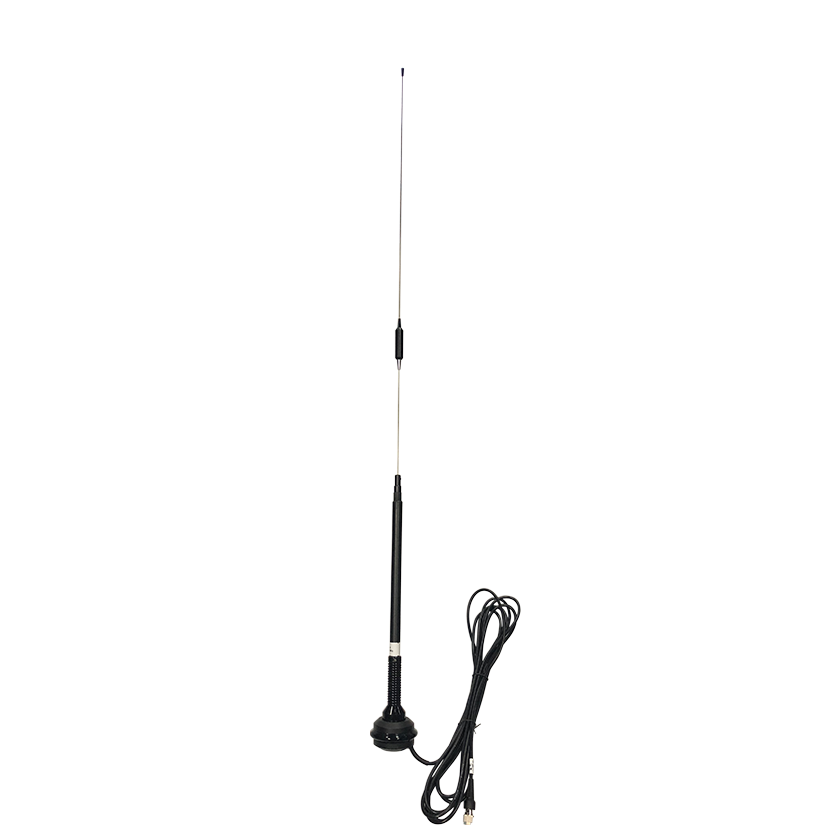

1 x High Gain Radio Antenna
1 x Metal plate for radio antenna
1 x Telescopic pole for radio antenna
1 x Hook and Screws for David (attached to David)
1 x tape measure
1 x carrying case
1 x toolbag
-
Datasheet_David GNSS RTK Receiver
Release Date: 2023-08-29 Version:2.4
-
Datasheet_RS400H3_28W Radio
Release Date: 2022-08-10 Version:1.7
-
Brochure_David GNSS Receiver
Release Date: 2021-05-13 Version:1.2
-
Item List_Base Kit with 28W Radio
Release Date: 2022-12-12 Version:1.4
-
Quick Start Guide_David
Release Date: 2019-02-28 Version:1.0
-
CE_David_DOC CER_RED
Release Date: 2018-08-29 Version:1.0
-
FCC-SDoc_David
Release Date: 2018-08-03 Version:1.0
David Quick Start Video - David Rover Working with CORS
David Quick Start Video - 2W Radio Working Mode (Base and Rover Setup)
David Quick Start Video - Point-to-Point Working Mode
David Quick Start Video - Static Surveying
David GNSS RTK Receiver Demo Video - Waterproof Demonstration
