David30-TAP GNSS Receiver
A multi-constellation high-precision GNSS receiver that offers Satellite-based Precise Point Positioning service.

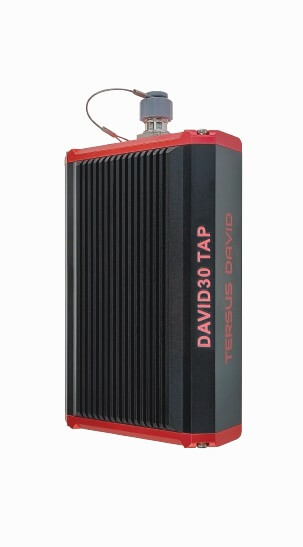

The Tersus David30-TAP is a multi-constellation high-precision GNSS receiver that offers centimeter-accurate positioning without Base stations. This is made possible through the use of Tersus' satellite-based precise point positioning service, which allows the receiver to receive corrections from the satellites directly, including ephemeris errors and satellite clock errors, etc.
The compact palm size makes it easy to integrate with various application systems. It is designed for intelligent transportation, construction, machine control, precision agriculture, and navigation applications.
TAP here, TAP there, TAP everywhere.
No local RTK base station
No CORS
Receive Corrections Broadcast by the Satellites
No local RTK base station
No CORS
Receive Corrections Broadcast by the Satellites
Features
Documents
Supports multi-constellation including BeiDou, GPS, GLONASS, Galileo, QZSS, SBAS and L-band
Supports 576 channels
Supports RTCM2.x/3.x, CMR/CMR+ corrections
Flexible for integration in different applications
Data update rate up to 20Hz
Input power range is 5~28V DC
Built-in 8GB storage benefits data collection
IP67-rated dust- & waterproof enclosure, for reliability in harsh environmental conditions
Supports Nuwa surveying software
-
Datasheet_David30-TAP
Release Date: 2023-05-06 Version:1.0
-
C02-C3 EMC_EN55032 20210119
Release Date: 2026-01-05 Version:
-
C03-C3 RED 20210119
Release Date: 2026-01-05 Version:
