BX306 UAV Kit

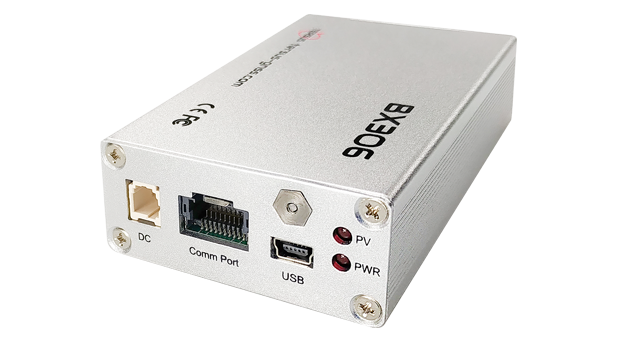

BX306 UAV Kit consists of BX306 UAV Basic and Eagle Radio Option. BX306 GNSS receiver is a cost-efficient GNSS RTK receiver for cm-level positioning and providing accurate raw measurement output, which can be integrated with autopilots and inertial navigation units.
Eagle Radio Option
Eagle Radio option is used for transmitting and receiving correction data at 915MHz. It has high transmitting power to provide wide communication range. With AX3703 mini GNSS antenna for Rover, the overall light weight is ideal for UAV applications.
Video_Demo

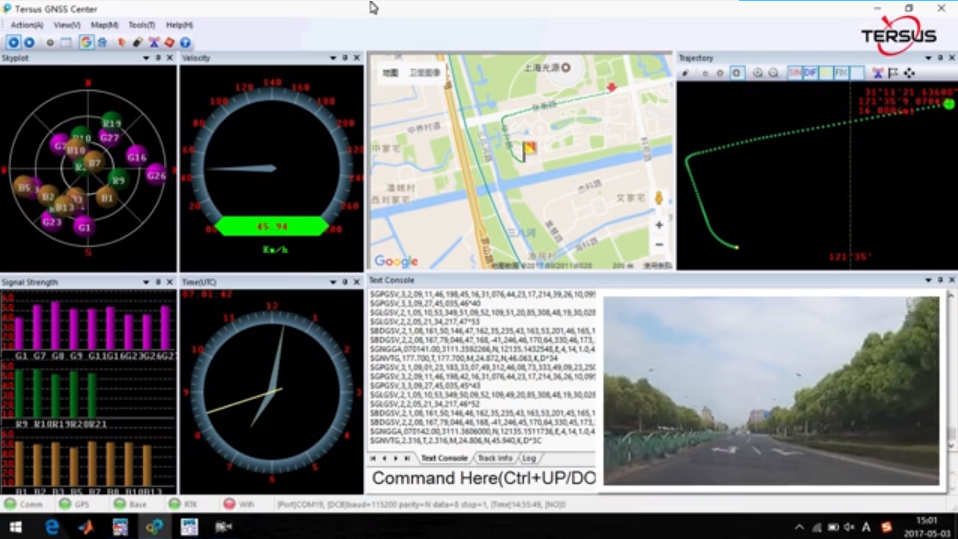

GNSS RTK Receiver Road Test Demo (BX306)
Features
In the Box
Documents
Supports GPS L1/L2, GLONASS L1/L2, and BeiDou B1/B2
Supports 384 channels
Supports in-built 4GB memory, which makes data collection easy
Up to 20Hz RTK solution and raw data output
Pin-to-pin compatible with NovAtel OEM615
Log/command compatible with NovAtel protocol
Supports event mark and PPS

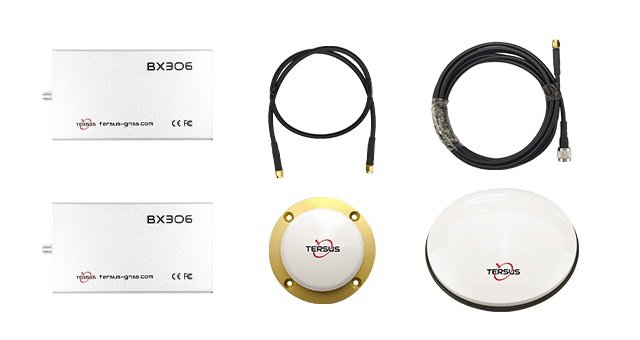

BX306 GNSS UAV Kit includes
2 x BX306 RTK receiver
2 x 2pin power cable
2 x 20pin external cable
2 x UART to USB converter
1 x AX4E02 GNSS antenna
1 x TNC-J to SMA cable 3m (GNSS antenna cable)
1 x AX3703 Mini GNSS Antenna
1 x SMA cable for AX3703
2 x 915MHz radio (Eagle) + 915MHz antenna
2 x power & data cable for 915MHz radio (Eagle)
1 x carrying case
1x USB Type A to USB Mini cable
-
Datasheet_BX306 GNSS UAV Kit
Release Date: 2021-01-13 Version:1.3
-
Brochure_GNSS OEM Boards & Receivers
Release Date: 2019-08-30 Version:2.2
-
Item List_BX306 UAV kit
Release Date: 2019-10-24 Version:1.3
-
User Manual_BX Series GNSS Receiver
Release Date: 2021-06-17 Version:2.5
