BX316D UAV Kit

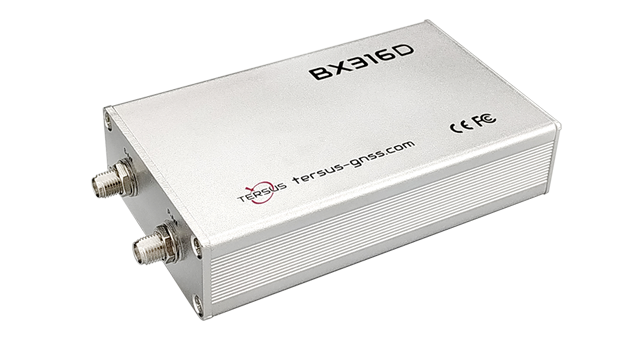

BX316D UAV Kit consists of BX316D UAV Basic and Eagle Radio Option. BX316D GNSS receiver is a cost-efficient dual frequency GNSS RTK receiver providing accurate positioning, raw measurement output, and heading information. It offers real-time cm-level positioning as well as flexible interfaces.

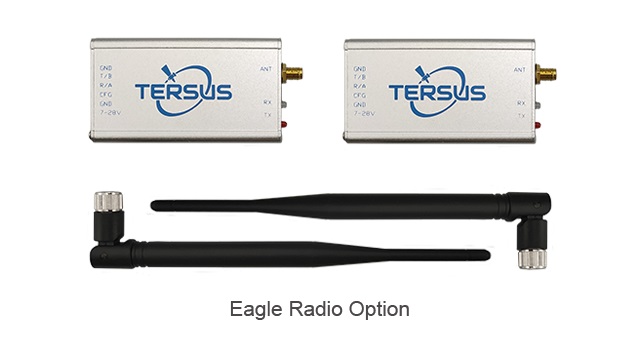

Eagle Radio Option
Eagle Radio option is used for transmitting and receiving correction data at 915MHz. It has high transmitting power to provide wide communication range. With AX3703 mini GNSS antenna for Rover, the overall light weight is ideal for UAV applications.
Video_Quick Start

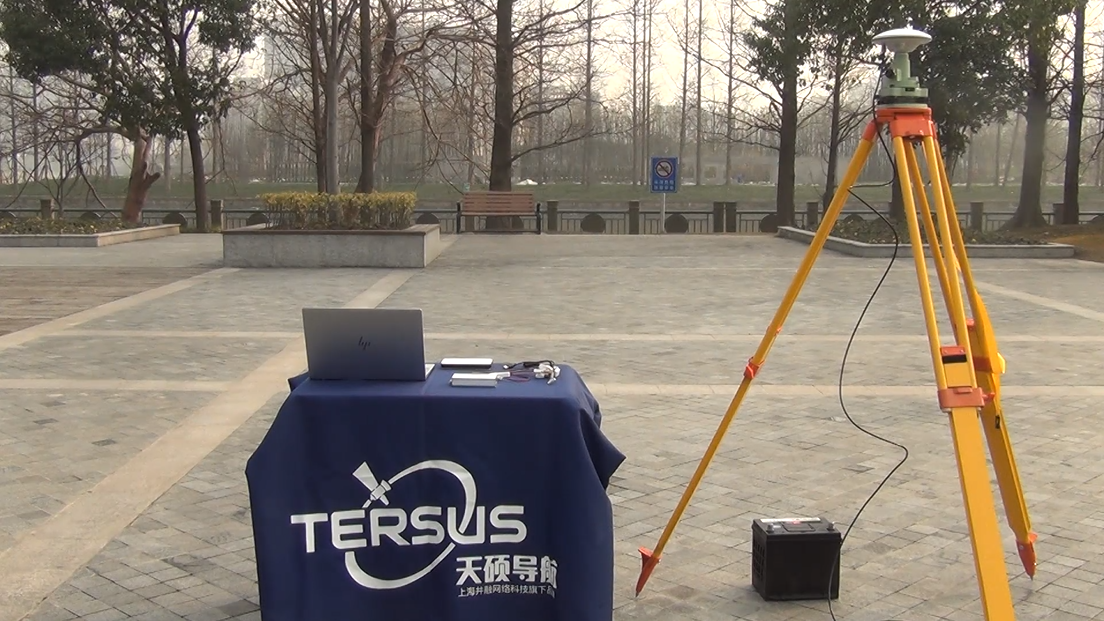

BX316 Kit HRS Quick Start Video - Base+Rover
Video_Quick Start

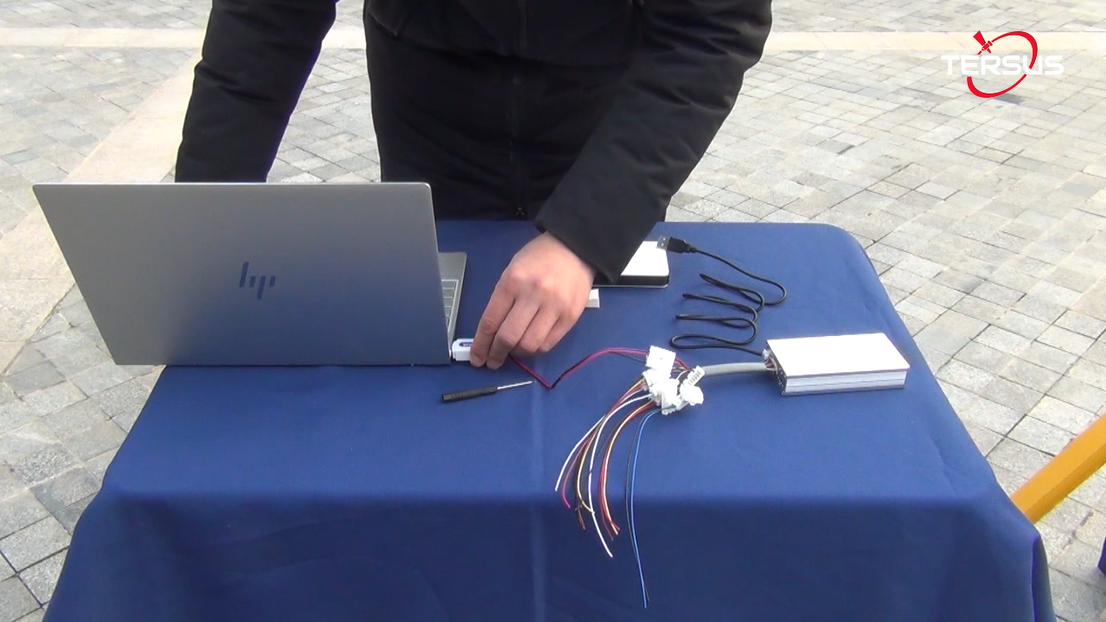

BX316 Quick Start Video - Collect Static Data
Video_Demo

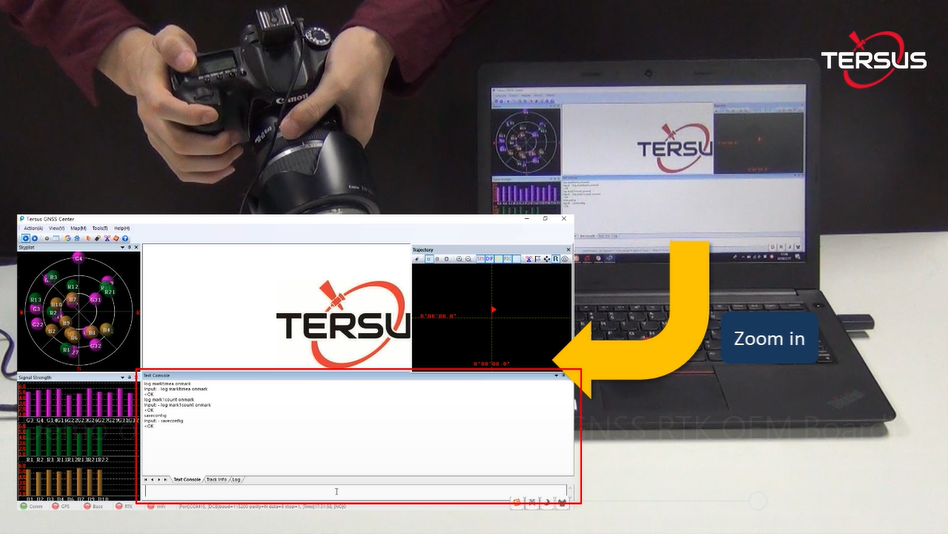

Logging Event Mark (BX316 GNSS RTK OEM Board)
Video_Demo

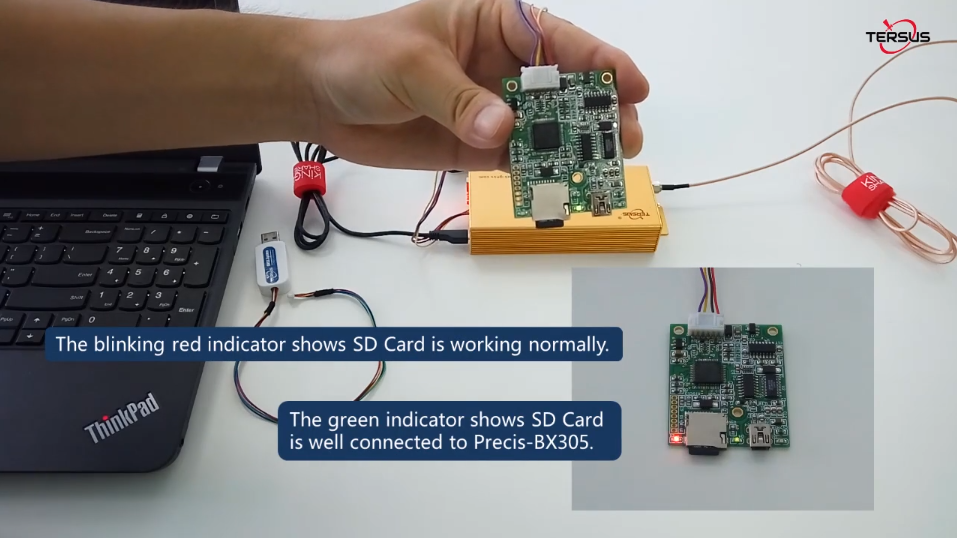

Log data with external data logger
Features
In the Box
Documents
Supports RTK positioning mode or RTK positioning + heading mode
The two modes are software configurable
The two modes are software configurable
Supports 384 channels
Command compatible with NovAtel protocol
Supports 20Hz RTK solution updates and raw data outputs
Supports in-built 4GB memory, which makes data collection easy
Supports PPS output and event mark input

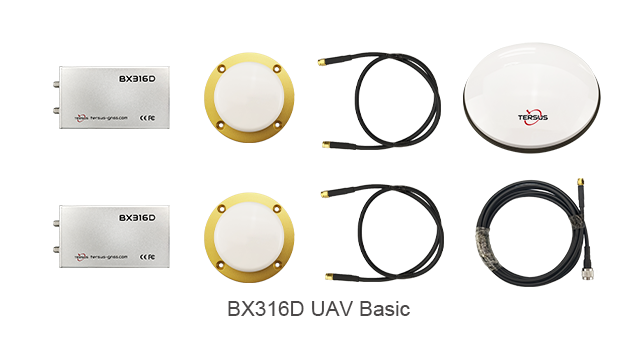

BX316D GNSS UAV Kit includes
2 x BX316D RTK receivers
2 x 2pin power cable
2 x 20pin external cable
2 x UART to USB converter
2 x USB Type A to USB Mini cable
1 x AX4E02 GNSS antenna
1 x TNC-J to SMA cable 3m (GNSS antenna cable)
2 x AX3703 Mini GNSS Antenna
2 x SMA cable for AX3703
2 x 915MHz radio (Eagle) + 915MHz antenna (optional)
2 x power & data cable for 915MHz radio (Eagle) (optional)
1 x carrying case
-
Datasheet_BX316D GNSS UAV Kit
Release Date: 2021-01-13 Version:1.3
-
Brochure_GNSS OEM Boards & Receivers
Release Date: 2019-08-30 Version:2.2
-
Item List_BX316D UAV kit
Release Date: 2019-06-20 Version:1.2
-
User Manual_BX Series GNSS Receiver
Release Date: 2021-06-17 Version:2.5
-
Log & Command Reference for Tersus BX GNSS OEM Boards
Release Date: 2020-07-23 Version:3.1
