Inertial Navigation Systems

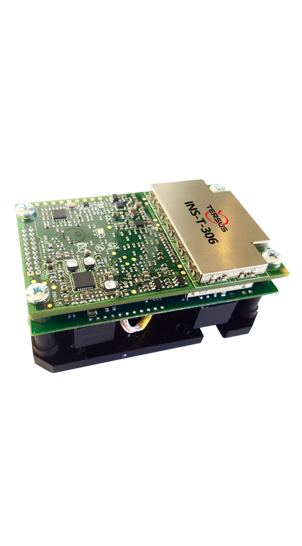

The Tersus GNSS-Aided Inertial Navigation Systems INS-T-306 is OEM version of fully-integrated, combined GPS L1/L2, GLONASS and BeiDou navigation and high-performance strapdown system. The INS-T-306 determines position, velocity and absolute orientation (heading, pitch and roll) for any device on which it is mounted. Horizontal and vertical position, velocity and orientation are determined with high accuracy for both motionless and dynamic applications.
Characteristics
The INS-T-306 utilizes an advanced GNSS receiver, a barometer, 3-axis magnetometers, MEMS accelerometers and gyroscopes to provide accurate position, velocity, heading, pitch and roll of the device under measure. The INS-T-306 contains the Tersus new on-board sensors fusion filter, state-of-the-art navigation and guidance algorithms and calibration software.
-
Datasheet_INS-T-306
Release Date: 2019-09-25 Version:2.2
-
Brochure_INS-T-306
Release Date: 2019-06-27 Version:1.1
-
User Manual_INS-T Inertial Navigation System_Interface Control
Release Date: 2018-04-20 Version:1.0
-
User Manual_INS-T Inertial Navigation System_Demo Program
Release Date: 2018-04-20 Version:1.0
-
Test Report_INS-T-306 Tersus RTK-Aided Inertial Navigation Systems
Release Date: 2018-04-20 Version:1.0
