High-performance GNSS+INS solution
By combining the accuracy of GNSS positioning with the stability of IMU gyro and accelerometer measurements, a reliable 3D navigation solution is created, offering consistent and precise real-time attitude, velocity, and position information even in challenging conditions like urban canyons, tunnels, and other obstructed areas.
All-in-one enclosure

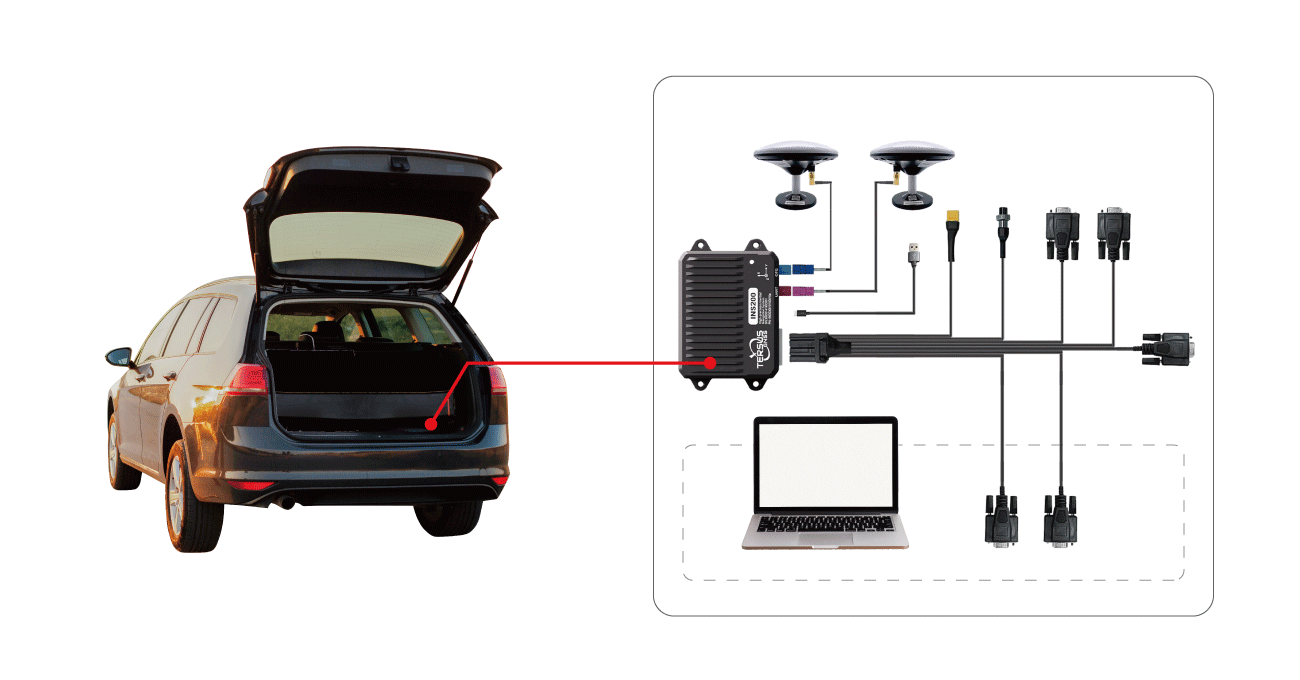

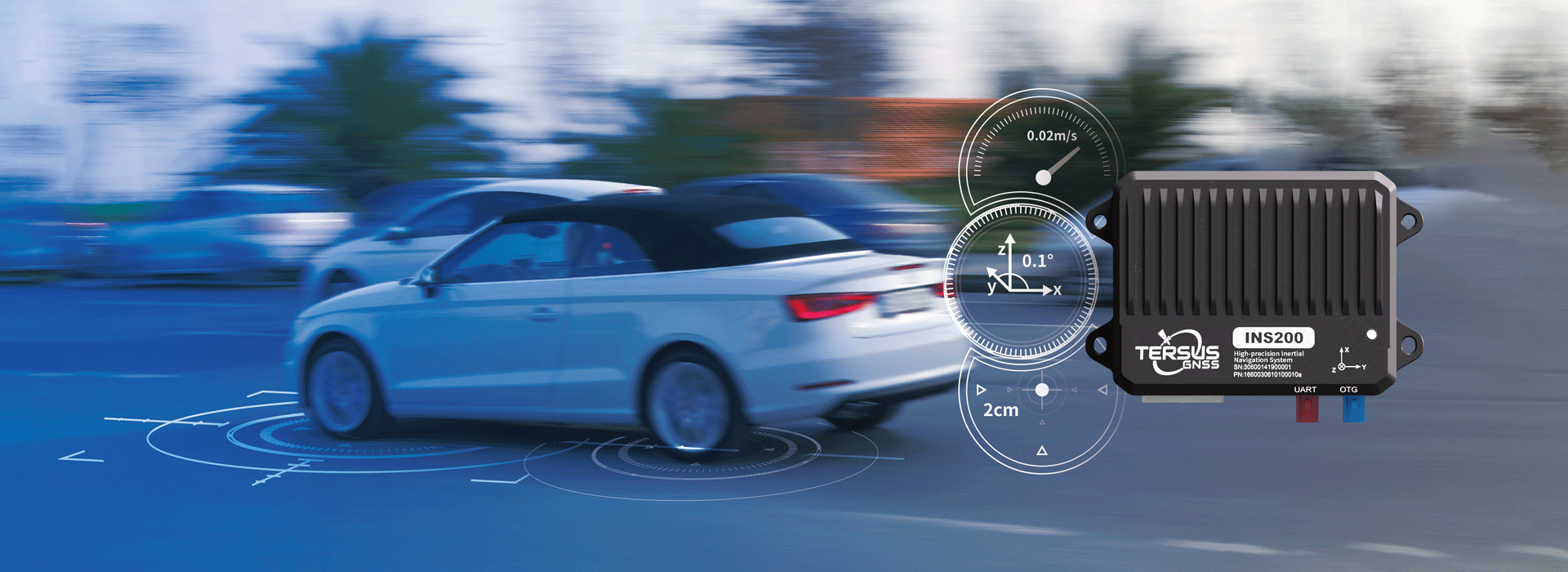

The INS200 is a small, lightweight, and low-power solution with multiple communication interfaces, making it easy to integrate into space and weight-constrained applications. It offers enhanced connection options including serial, CAN, and Ethernet. Additionally, the INS200 is IP67 rated, meaning it is dust and waterproof, allowing you to use it without worrying about damage caused by dust or water.
INS200 has a built-in automotive-grade lMU sensor array that supports external odometer information, providing accurate and continuous real-time attitude-speed position information, such as urban canvons and elevated tunnels.
A comprehensive combination of navigation algorithms that provide position accuracy of 2cm, velocity accuracy of 2cm/s, and attitude accuracy of 0.1°
-
Datasheet_INS200
Release Date: 2024-06-14 Version:1.1
